5 PACK

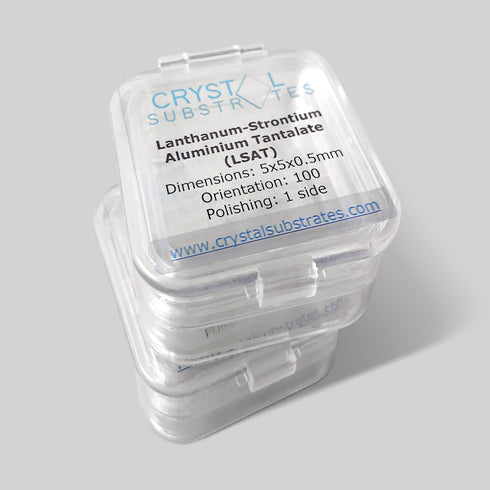

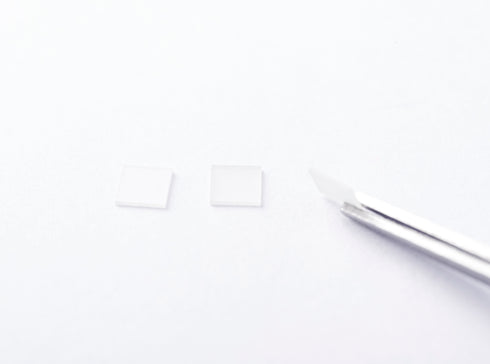

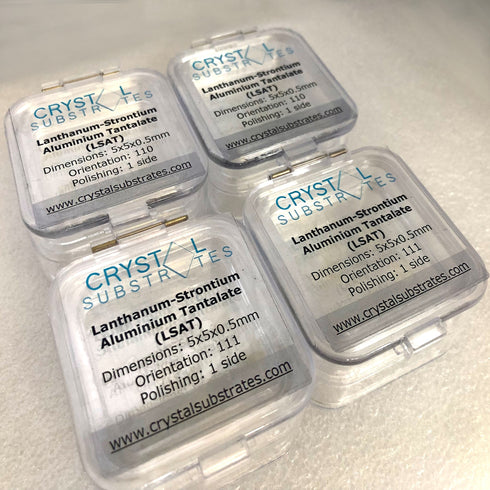

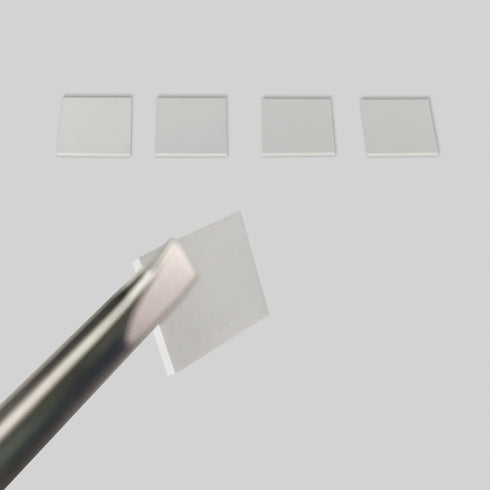

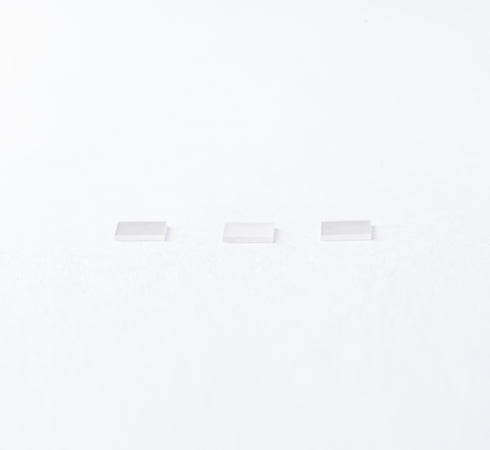

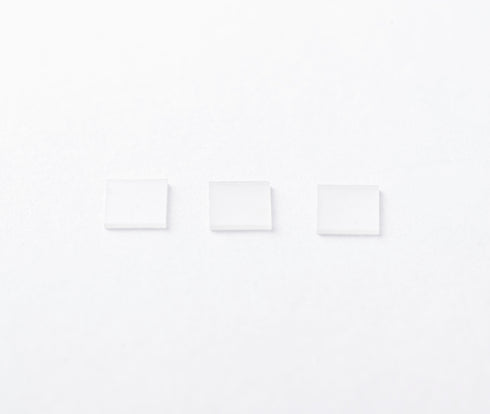

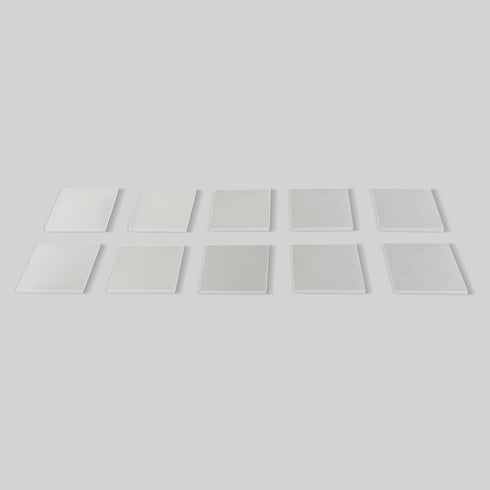

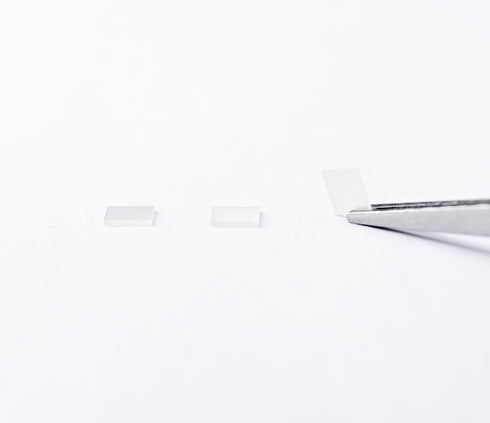

Lanthanum Strontium Aluminium Tantalate (LSAT) Crystal Substrates (5pack)

$176.00
(5 Pack)

Price per substrate = $35.20 ea

  • Fast Worldwide Delivery

  • High Quality Substrates

AVAILABILITY: In Stock - Delivery straight away

Need something else?

Click here to tell us your requirements

MATERIAL INFORMATION
MATERIAL PROPERTIES
XRD ANALYSIS
DELIVERY
FAQS
MATERIAL INFORMATION

We offer all standard sizes for LSAT substrates, up to a maximum diameter of 50mm (depending on orientation). Please get in touch here to email us your requirements.

  • Name: LSAT, Lanthanum Strontium Aluminium Tantalate crystal substrate
  • (LaAlO3)0.3(Sr2TaAlO6)0.7 or its less common alternative: (La0.18Sr0.82)(Al0.59Ta0.41)O3
  • Lattice parameter: a=7.736 Å (so ½ a = 3.868 Å)
  • Crystal Structure: Perovskite, Cubic
  • Commonly used as substrate for: many perovskite crystals, high-T semiconductors awith relatively low strain as wells as GaN
  • <0.2 nm rms roughness (measured 5x5 µm AFM scan)
  • 5x5 mm to 2 inch diameter and customized
  • Single or double side polished
  • Optically transparent, chemically and thermally stable even in reducing atmospheres keeping low electrical conductivity across a range of deposition conditions
  • Next day delivery
  • Melting point 1,840 °C means that high quality crystals can be grown using the Czochralski process which keeps the cost lower than other growth methods and can be grown in larger diameter crystals than e.g. STO.

LSAT substrates are popular for epitaxial oxides and their heterostructures, often in the study of electron correlation phenomena. LSAT, along with the other perovskite substrates we stock is great for growing perovskites e,g, strontium titanate (SrTiO3), cuprate superconductors (such as YBCO), iron-based superconductors (iron-pnictides), rare-earth manganites, rare-earth nickelates and others. Semiconductors such as gallium nitride can also be grown on LSAT.

LSAT lattice constant

The lattice constant of LSAT is a=7.736 Å (so ½ a = 3.868 Å) so most perovskite films match with the half lattice constant of LSAT making good films with low strain. LSAT crystal has larger size and higher crystallinity than SrTiO, and it does not contain twins in the structure as does LaAlO3  which occur due to the phase transition on cooling of LAO.

LSAT chemical and thermal stability

One of the differentiators of LSAT as a substrate for the growth films stems is its high chemical and thermal stability, and very low electrical conductivity across a range of temperatures. The growth conditions for some epitaxial layers can cause some substrates to form high densities of defects that can alter their properties. One example is the tendency of strontium titanate to form oxygen vacancy defects under high temperatures in high vacuum. These defects result in considerable variations of its properties, including the increase of electrical conductivity and optical opacity. LSAT on the other hand, is stable in both oxidizing and fairly reducing environments in high temperatures, thus enabling a larger window for the processing and growth conditions.

So if you’re growing perovskites or other materials at reducing conditions or at very high T then consider using LSAT.

If you have any questions about LSAT crystal substrates please send me an email at info@crystalsubstrates.com

Dr Joseph Franklin

MATERIAL PROPERTIES



LINEAR FORMULA:

(LaAlO3)0.3(Sr2TaAlO6)0.7 or (La0.18Sr0.82)(Al0.59Ta0.41)O3
PURITY: >99.99%
CRYSTAL ORIENTATION:  (100), (110) & (111)
GROWTH METHOD: Chralski (CZ) method
CRYSTAL STRUCTURE: Cubic
LATTICE CONSTANT: a = 3.868 Å
MELTING POINT  (°C): 1840
THERMAL EXPANSION COEFFICIENT (/K): 10 X 10-6/°C
HARDNESS: 6.5
MOLAR MASS (G/MOL): 399.59 g/mol
DENSITY (G/CM3): 6.74 g/cm3
REFRACTIVE INDEX:
DIELECTRIC CONSTANTS: ε = 9.8 or 22
CHEMICAL STABILITY:
SIZES: 5x5mm & 10x10 mm
TYPICAL THICKNESS: 0.5mm
SIZE TOLERANCES:  +/- 0.1mm
THICKNESS TOLERANCES:  +/- 0.015mm
ORIENTATION PRECISION: +/-0.5 degree
POLISHING OPTIONS: SINGLE SIDED (1SP) OR BOTH SIDES POLISHED (2SP)
ROUGHNESS RA: <0.5nm
